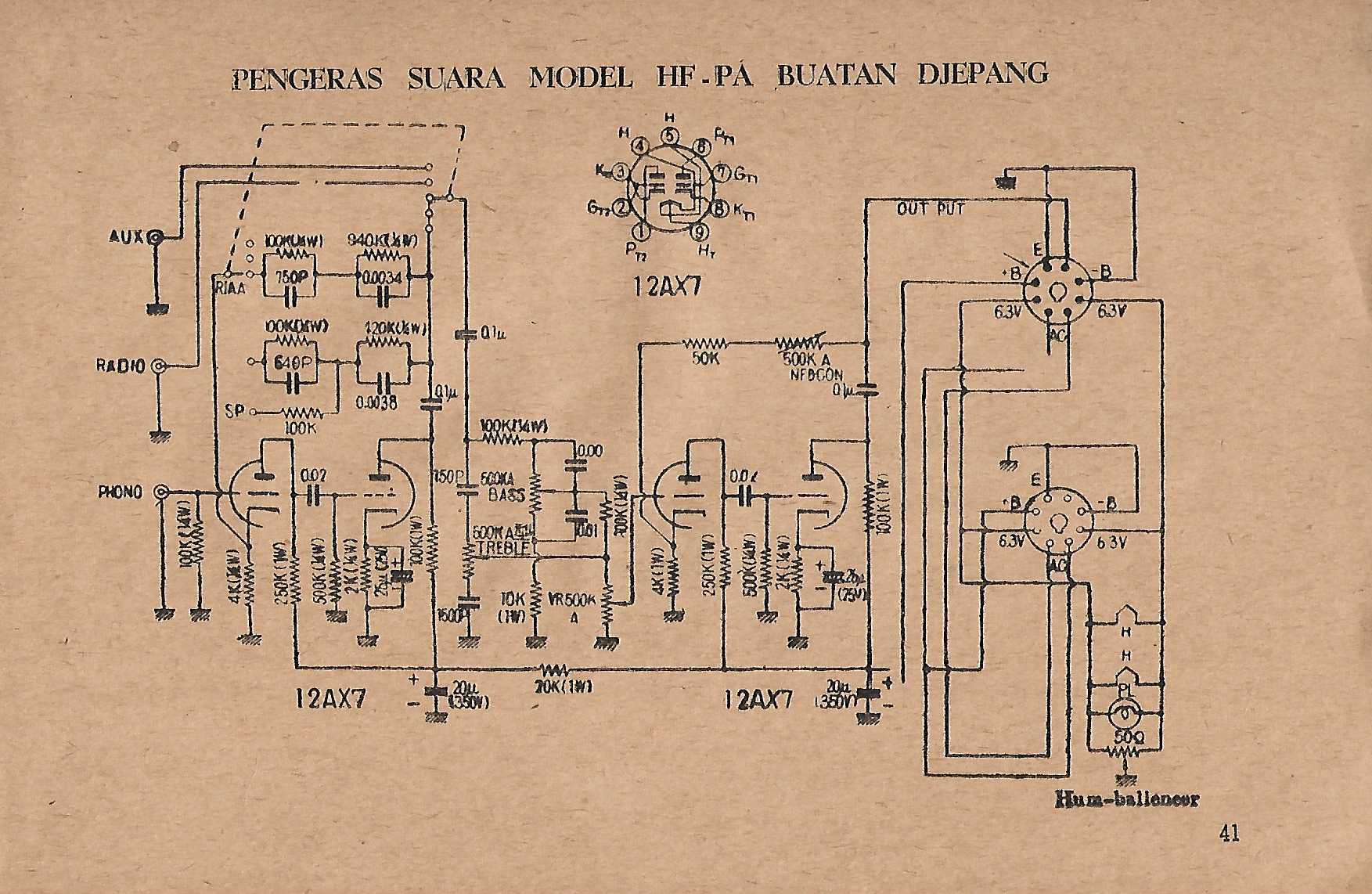

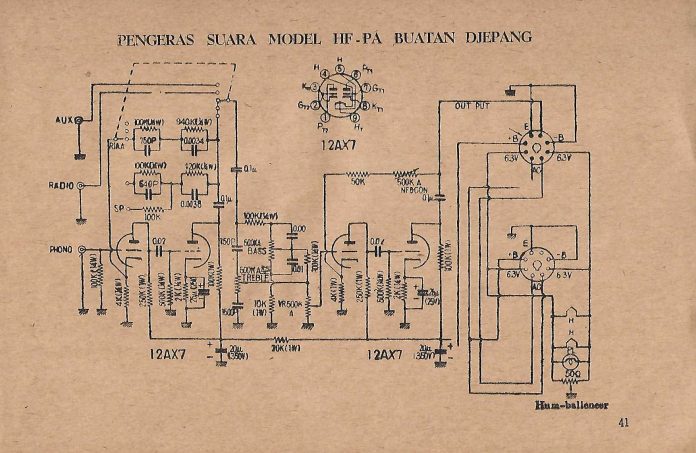

Based on the Vintage electrical schematic, this appears to be a transformer-coupled amplifier circuit. It likely utilizes transformers and tubes to amplify an audio signal for driving loudspeakers. Here’s a breakdown of its potential design and functionalities based on the visible components:
Possible Amplifier Stages:
- Input Stage (V1a: 12AX7): The first triode section of the 12AX7 tube (V1a) likely amplifies the weak input signal from your audio source (e.g., turntable, phone).
- Coupling Capacitor (C1): Blocks DC voltage from the previous stage while allowing the AC audio signal to pass to the next stage.
- Grid Resistor (R1): Sets the input impedance of the first triode section and affects gain.
- Cathode Bypass Capacitor (C2): Improves AC signal fidelity and stability in the first triode section.
- Phase Inverter Stage (V1b: 12AX7): The second triode section of the 12AX7 tube (V1b) might invert the phase of the amplified signal. This is a common technique in push-pull amplifier designs to drive the output stage more efficiently.
- Coupling Capacitor (C3): Blocks DC voltage from the previous stage while allowing the AC audio signal to pass to the output stage.
- Driver Stage (V2a & V2b: 6EM7): The two 6EM7 tubes (V2a and V2b) likely function as a voltage amplifier stage, further increasing the signal strength before the output stage.
- Interstage Transformer (T2): Couples the driver stage to the output stage, transforming the voltage and impedance levels to efficiently drive the push-pull output tubes.
- Output Stage (VT2a & VT2b: 30A1): The two 30A1 tubes (VT2a and VT2b) are likely connected in a push-pull configuration, a common design for power amplifier stages in transformer-coupled amplifiers. This configuration utilizes both the inverted and non-inverted signals from the phase inverter stage to improve efficiency and reduce distortion.
- Output Transformer (T3): Matches the impedance of the push-pull output stage to the speakers for efficient power transfer and optimal sound reproduction.
- Power Supply (Not Shown): The schematic doesn’t depict the power supply section, but a complete amplifier would include a power transformer, rectifier circuit (likely using tubes), filter capacitors, and voltage regulator circuits to provide the necessary DC voltages for each stage of the amplifier.
Key Points:
- Transformer-coupled push-pull amplifiers are known for their potential for high-fidelity sound reproduction. The transformers help to isolate stages, minimize noise, and improve overall audio quality.
- This is a simplified explanation based on the visible components in the schematic. A complete understanding of the amplifier’s operation would require the entire circuit diagram, including the power supply section and component values.
- Building a tube amplifier requires expertise and knowledge to handle high voltages safely. Always refer to a verified and complete schematic diagram for accurate component selection and assembly instructions.
Safety Reminder:
Tube amplifiers operate with dangerous voltages. If you’re working with this amplifier circuit, exercise caution and follow proper safety precautions as you would with any high voltage equipment. Consider consulting with a qualified professional if you’re not comfortable working with electronics and high voltage systems.
Additional Notes:
- The text “Hengfon PA Japan” on the schematic might not directly correspond to a commercially available brand or model of amplifier. It’s possible:
- Custom Design: The schematic could represent a custom-designed transformer-coupled amplifier circuit, potentially built by someone or a company named Hengfon PA Japan.
- Internal Design Reference: In some cases, such alpha-numeric codes within schematics might be internal reference designations used by the manufacturer and not indicative of a consumer product name.
I cannot provide a complete bill of materials (BOM) due to the following reasons:
- The schematic lacks the power supply section.
- Component values are not visible on the schematic.
If you’re looking to build this amplifier, exercise caution and prioritize safety. Always consult a qualified professional and a complete schematic with component values for accurate assembly.
