The Mighty 12AT7: A Workhorse of Vintage Audio
The 12AT7, a seemingly unassuming nine-pin glass tube, holds a legendary place in the history of electronics. This miniature marvel, a dual triode vacuum tube, powered countless vintage audio amplifiers, radios, and even early computers. But what exactly is a 12AT7, and why is it so revered by audiophiles and electronics enthusiasts? Let’s delve into the world of tubes and explore the magic of the 12AT7.
Two Triodes in One: Versatility at its Finest
The key to the 12AT7’s functionality lies in its dual triode design. Imagine two tiny triodes, each consisting of a filament (heater), a plate (anode), and a grid (control grid), encapsulated within a single glass envelope. Each triode can operate independently, offering remarkable versatility to circuit designers.
The Heart of Audio Amplification
The 12AT7 truly shines in the world of audio. Here are some of its most common applications:
- Preamplifier Stages: Often the first stop for your instrument’s signal, the 12AT7 in the preamp stage takes a weak signal from your guitar, microphone, or turntable and significantly boosts its strength. This amplified signal is then sent to the power amplifier for further processing.
- Phase Inverters: In push-pull amplifier designs, a crucial element for improved efficiency and reduced distortion, the 12AT7 can be used in the phase inverter stage. Here, one triode section inverts the phase of the audio signal for one channel, ensuring proper operation in the push-pull configuration.
- Voltage Amplifiers: Sometimes, a signal needs an extra boost before reaching the output stage. The 12AT7, with its voltage gain capabilities, can take care of that, further amplifying the signal strength.
Beyond Audio: A Legacy of Applications
The 12AT7 wasn’t limited to audio equipment. Its versatility extended to various electronic devices of the past, including:
- Radio Receivers: The 12AT7 played a role in amplifying weak radio signals, allowing you to enjoy clear audio from your favorite stations.
- Televisions: Early television sets relied on the 12AT7 for video and audio amplification, bringing moving pictures and sound into living rooms.
- Computers: The dawn of the computer age saw the 12AT7 used in various circuits of early computers, contributing to the technological advancements of the time.
Technical Specifications: Understanding the Power
While specific details can vary, here’s a general overview of the 12AT7’s electrical characteristics:
- Heater Voltage: Typically 6.3 volts AC
- Plate Voltage: Up to 300 volts DC (depending on circuit design)
- Gain: Around 60 (voltage gain) This means the 12AT7 can amplify the voltage of an input signal by a factor of 60.
- Current Handling: Moderate current handling capabilities compared to some power amplifier tubes.
A Sound Worth Preserving
The 12AT7 is prized by audiophiles for its distinct sonic signature. While the sound ultimately depends on the surrounding circuitry, the 12AT7 is often described as having a clear, well-balanced character with smooth highs and warm mids, contributing to the rich and detailed sound associated with vintage audio equipment.
An Enduring Legacy: A Tube Still in Demand
The widespread use and long production history of the 12AT7 make it a readily available and relatively affordable tube. This allows for replacements, repairs, and even experimentation with different brands offering subtle sonic variations in vintage audio gear.
The 12AT7 is more than just a vacuum tube; it’s a testament to the ingenuity of an era and a cornerstone of the history of electronics. Its enduring legacy lives on in the world of vintage audio, offering a distinct sonic experience that continues to captivate music enthusiasts today.
The 12AT7 is a miniature nine-pin dual triode vacuum tube, widely used in various electronic devices, particularly vintage audio equipment. Here’s a breakdown of its key characteristics and functionalities:
Dual Triode Design:
- The 12AT7 is essentially two triodes encapsulated in a single glass envelope. A triode is a type of vacuum tube with three electrodes: a filament (heater), a plate (anode), and a grid (control grid).
- Each triode section of the 12AT7 can function as a separate amplifier, offering versatility in circuit design.
Applications:
- Preamplifier Stages: One of the most common uses for the 12AT7 is in the preamplifier stage of guitar amplifiers, hi-fi amplifiers, and instrument amplifiers. In this role, it amplifies the weak signal from your instrument (guitar, microphone, etc.) before sending it to the power amplifier stage.
- Phase Inverters: In push-pull amplifier designs, the 12AT7 can be used in the phase inverter stage. This stage inverts the phase of the audio signal for one of the output channels, which is a crucial step for proper operation in push-pull configurations known to improve efficiency and reduce distortion.
- Voltage Amplifiers: The 12AT7 can also be used in voltage amplifier stages, further boosting the signal strength before it reaches the output stage.
- Other Applications: Beyond audio, the 12AT7 found use in various applications like radio receivers, televisions, and early computers due to its versatility and reliable performance.
Electrical Specifications (Typical):
- Heater Voltage: 6.3 volts AC (typical)
- Plate Voltage: Up to 300 volts DC (depending on circuit design)
- Gain: Around 60 (voltage gain) This indicates that the 12AT7 can amplify the voltage of an input signal by a factor of 60.
- Current Handling: Moderate current handling capabilities compared to some power amplifier tubes.
Popularity and Availability:
- Due to its widespread use and long production history, the 12AT7 is a readily available and relatively affordable tube.
- Several manufacturers produce high-quality 12AT7 tubes, allowing for replacements or experimentation with different sonic characteristics in vintage audio equipment.
Here are some additional points to consider:
- Sound Characteristics: The sonic signature of a 12AT7 depends on the specific circuit design and the other components it interacts with. However, some audiophiles describe the 12AT7 as having a clear, well-balanced sound with smooth highs and warm mids.
- Alternatives: Several other miniature triode tubes like the 12AX7 and 12AU7 can be used in place of the 12AT7 in certain circuits, although their gain and current handling capabilities might differ. Consult a qualified technician or reference materials for specific substitutions.
If you’re interested in learning more about the 12AT7 or vacuum tubes in general, you can explore resources like:
- Tube Data Sheets: Websites like https://www.mouser.com/electronic-components/ offer datasheets containing detailed specifications and electrical characteristics of various tubes, including the 12AT7.

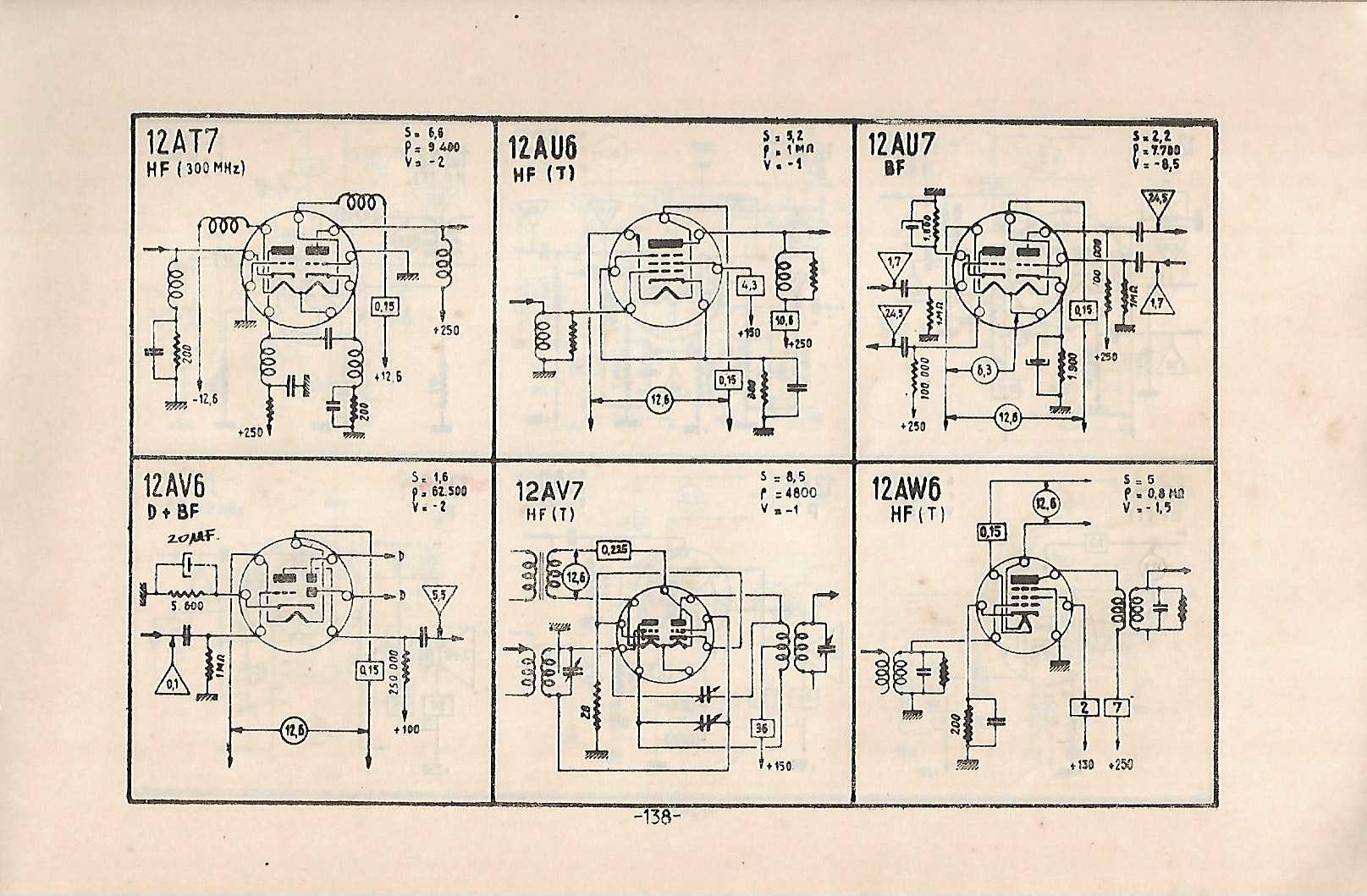

- Audio Amplifier Schematics: Studying schematics of vintage amplifiers that utilize the 12AT7 can provide insights into how it functions within a specific circuit.
- Vintage Audio Forums: Online communities dedicated to vintage audio equipment are a great place to find discussions and information about the 12AT7 and its applications.
